22212

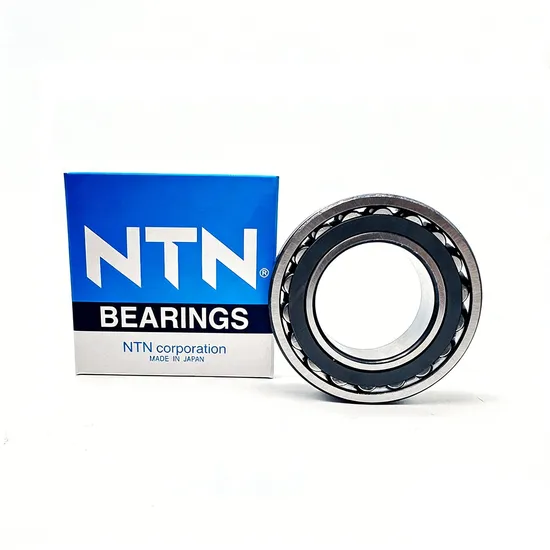

Spherical roller bearing 22212
Spherical roller bearing, 60 mm bore, 110 mm outside diameter and 28 mm width. Made to ISO boundary dimensions for interchange with common industry designations.
Highlights
- Misalignment capability
- C3 clearance on request
- Steel or brass cage options
Applications
- Mining machinery
- Paper machines
- Conveyors
- Wind turbines
Details
The 22212 is a spherical roller bearing: 60 mm bore, 110 mm outside diameter and 28 mm width.
Supplied to ISO boundary dimensions so it is dimensionally interchangeable with the corresponding industry designation. Quantity pricing, clearance and packaging options are confirmed with your quote — add the model to the enquiry list to start.
Specifications
| Dimensions | |
|---|---|
| Bore (d) | 60 mm |
| Outside diameter (D) | 110 mm |
| Width (B) | 28 mm |
| Design | |
| Cage | Steel cage standard, brass on request |
